Installing GlowTrax Around Corners, Peaks, and Complex Rooflines

A straight run of roofline is the easy part. Corners and peaks are where most Govee installs actually fall apart, because the plastic clips and tape that come with the lights were never designed to hold a bend. Here's how GlowTrax handles the parts of your roofline that aren't straight lines.

Why Corners Are Where Tape Fails First

The included 3M tape on Govee permanent lights struggles most at transitions, outside corners, inside corners, and steep peaks, because that's where the strip is under the most mechanical stress. Heat and cold make it worse, since the adhesive expands and contracts with the temperature. A track solves the straight sections. Hinges and angle pieces solve the corners.

How GlowTrax Handles Corners

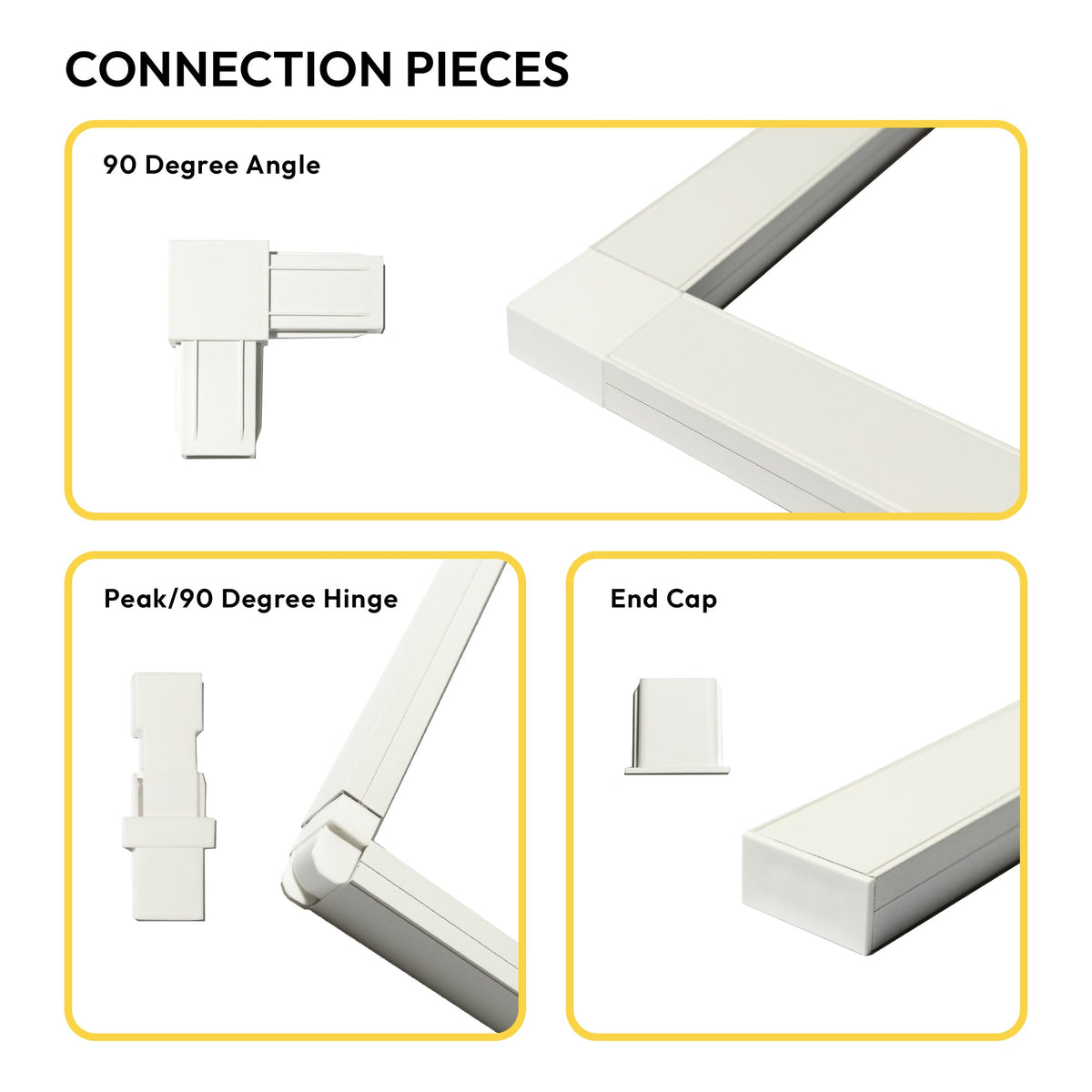

Every GlowTrax kit includes 2 hinges and 2 ninety degree angle pieces. The two pieces solve slightly different problems.

• Hinges flex to match the actual angle of your roofline, which is useful for corners that aren't a clean 90 degrees, or for peaks where the roofline pitch varies.
• Ninety degree angle pieces are fixed right angle connectors, best for standard outside or inside corners where the angle is a true 90 degrees.

Planning for Peaks and Dormers

Before you order, walk your roofline and count every corner and peak in the section you plan to light. A simple rectangular home might only need the 2 hinges and 2 angle pieces already included in a standard kit. A home with dormers, multiple gables, or a steep A frame peak will need more. Order additional hinges or angle pieces up front rather than discovering a gap mid install.

Step by Step: Running GlowTrax Around a Corner

1. Mount the straight track sections leading up to the corner first, leaving a small gap where the hinge or angle piece will connect.
2. Test fit the hinge or angle piece against the actual corner before securing it, since roofline angles aren't always a perfect 90 degrees even when they look like it.
3. Secure the connector with screws appropriate for your substrate, following the manufacturer's recommendations for your specific mounting surface.
4. Continue the straight track sections on the other side of the corner.
5. Run your Govee light strip through the completed track last, once the full path is secured.

A Few Install Tips

Mount the track close enough to the roofline edge that the light reads cleanly from the ground, but not so close that you lose room to secure it properly. Most homeowners find a small setback from the edge looks best and gives the most secure mounting surface. If you're painting the track to match your trim, paint before installing around corners, since it's easier to get even coverage on a flat piece than on one already mounted at an angle.

Frequently Asked Questions

How many hinges do I need for a home with several peaks?
Count every corner and peak in your planned run before ordering. Each kit includes 2 hinges and 2 ninety degree angle pieces, so a more complex roofline will need extras ordered separately.

What's the difference between a hinge and a ninety degree angle piece?
Hinges flex to match non standard angles. Ninety degree angle pieces are fixed for standard right angle corners.

Can I install GlowTrax on a roofline with dormers?
Yes. Plan for one hinge or angle piece per corner or transition, and order enough to cover the full shape before starting.
